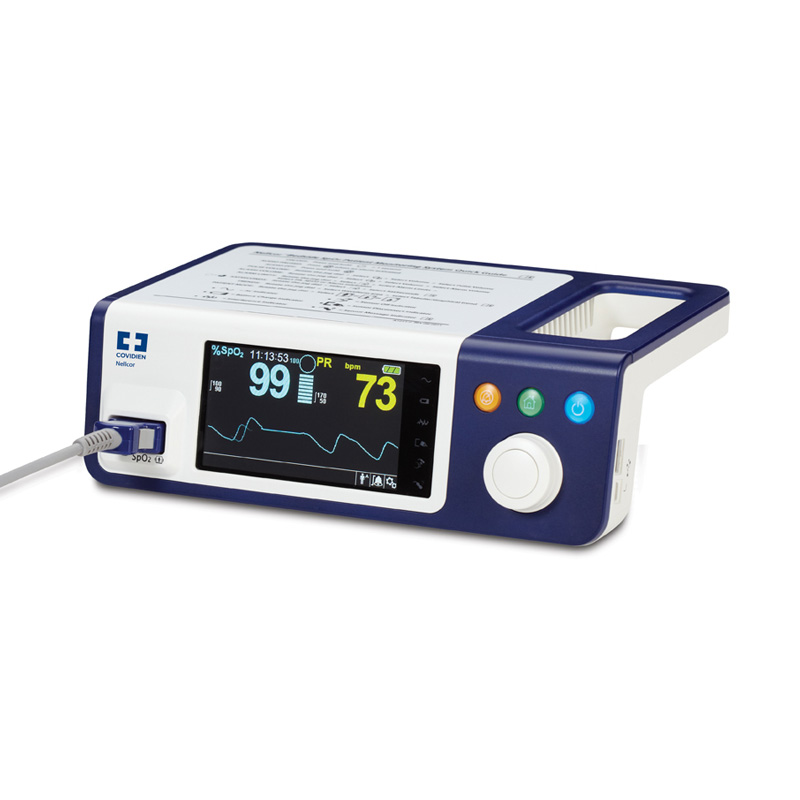

Nellcor™ Bedside SpO₂ Monitoring System

Name: Nellcor&#x2122; Bedside SpO₂ Monitoring System
SKU: 255-NELLSPO2AD3
Availability: InStock

Monitor with Confidence

The Nellcor™ Bedside SpO2 Patient Monitoring System incorporates the latest Nellcor™ digital signal processing technology for accurate, reliable readings even during low perfusion and other forms of signal interference, providing clinicians with access to the most critical information regarding their patients’ respiratory status.

With improved functionality, including continuous SpO2 and pulse rate monitoring, trending data, and SatSeconds alarm management, clinicians have the information they need to detect respiratory complications earlier and intervene sooner.

Sorry, this product is not available in your country

SKU: 255-NELLSPO2AD3

Features

Multicolor display screen with a black background for contrast
Backup audible alarm
Multiple-language graphical user interface to support variety of users
96-hour trend memory with data captured every four seconds
Distinctive digital signal processing technology from Covidien
Simple, intuitive operation with a space-saving design
Displays plethysmographic waveforms, pulse amplitude, current measured SpO₂, and pulse rate

Performance

Measurement Range

SpO₂ : 1% to 100%
Pulse rate: 20 to 250 beats per minute (bpm)
Pulse amplitude: 0.03% to 20%

Accuracy

Saturation (% SpO₂ ± 1 SD)
Adult: 70% to 100% ± 2 digits
Neonate: 70% to 100% ± 3 digits
Low perfusion: 70% to 100% ± 2 digits
Pulse rate: 20 to 250 bpm ± 3 digits
Low perfusion: 20 to 250 bpm ± 3 digits

Electrical

Instrument

Power requirements: 100 to 240 VAC, 50/60Hz, 45 VA
Fuse rating: Fast-acting 2A 32VAC/DC, Fast-acting 500mA 32VAC/50DC

Battery

Type: Li-Ion
Battery capacity: Minimum of 5 hours using new, fully charged battery with no alarms

Physical Characteristics

Weight

1.6 kg (3.5 lbs)

Size

82 H x 255 W x 165 D (mm)
(3.23 H x 10.04 W x 6.50 D (in))

Output

Trend data download
Nurse call capability

Display/Indicators

Pulse amplitude indicator (8-segments)
Visual indicators: Pulse search, audible alarms silenced or off, interference indicator, battery charging, and SatSeconds alarm management clock, Pleth

Alarms

Audible and visual alarms for high/low saturation and pulse rate
SatSeconds alarm management settings: 10, 25, 50, and 100 or OFF
Audible and visual warning indicators for low battery and sensor off audible and visual sensor disconnect alarms

Performance

Measurement Range
SpO2:	1% to 100%
Pulse rate:	20 to 250 beats per minute (bpm)
Pulse amplitude:	0.03% to 20%
Accuracy
Saturation:	(% SpO2 ± 1 SD)
Adult:	70% to 100% ± 2 digits
Neonate:	70% to 100% ± 3 digits
Low perfusion:	70% to 100% ± 2 digits
Pulse rate:	20 to 250 bpm ± 3 digits
Low perfusion:	20 to 250 bpm ± 3 digits

Electrical

Instrument
Power requirements:	100 to 240 VAC, 50/60Hz, 45 VA
Fuse rating:	Fast-acting 2A 32VAC/DC, fast-acting 500mA 32VAC/50DC
Battery
Type:	Lithium ion
Battery capacity:	Minimum of five hours using new, fully charged battery with no alarms

Environmental

Operating Temperature
Instrument:	5°C to 40°C (41°F to 104°F)
Transport/storage temperature (in shipping carton):	-20°C to 60°C (-4°F to 140°F)

Operating Humidity	15% to 93% noncondensing

Operating Altitude	-170 m to 4877 m (-557 ft to 16,000 ft)

Physical Characteristics

Weight	1.6 kg (3.5 lbs)
Size	82 H x 255 W x 165 D (mm) (3.23 H x 10.04 W x 6.50 D (in))

Equipment Compliance

Standards Compliance
EN ISO 9919:	2009, EN ISO 80601-2-61:2011
EN IEC 60601-1:	2005
EN IEC 60601-1-2:	2nd edition
EN IEC 60601-1:1998 + A1:1991 + A2:1995
EN 60601-1:1990 + A11:1993 + A12:1993 + A13:1996
CAN/CSA C22.2 No. 601.1 M90
UL 60601-1:	1st edition

Equipment Classifications

Type of protection against electric shock:	Class 1 (internally powered)
Degree of protection against electric shock:	Type BF – applied part
Mode of operation:	Continuous
Electromagnetic compatibility:	IEC 60601-1-2:2007
Liquid ingress:	IPX2
Degree of safety:	Not suitable for use in the presence of flammable anesthetics

Output

Trend data download

Nurse call capability

Display/Indicators

Pulse:	amplitude indicator (eight segments)
Visual indicators:	Pulse search, audible alarms silenced or off, interference indicator, battery charging, SatSeconds alarm management clock, pleth

Alarms

Audible and visual alarms for high/low saturation and pulse rate

SatSeconds alarm management settings: 10, 25, 50 and 100, or off

Audible and visual warning indicators for low battery and sensor off

Audible and visual sensor disconnect alarms

Optional Accessories

Mounting adapter

Interface cables

10-hour battery
