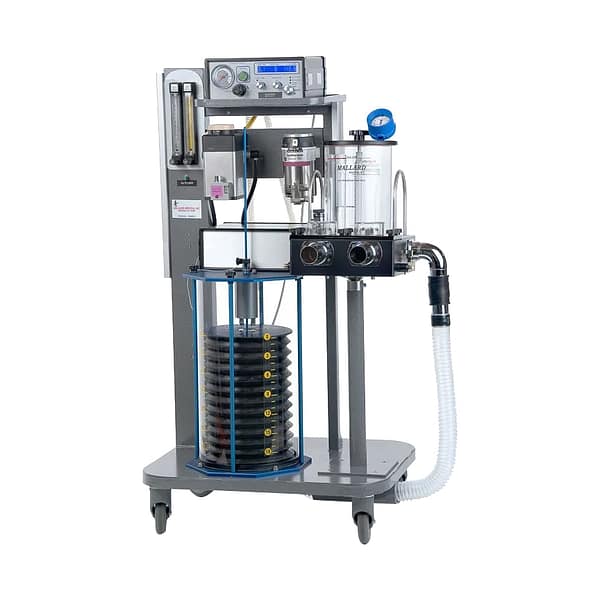

Model 2800C Large Animal Anesthesia Ventilation System

Name: Model 2800C Large Animal Anesthesia Ventilation System
SKU: 1845556

The world’s most reliable large animal ventilator.

Sorry, this product is not available in your country

SKU: N/A

STANDARD MODEL:

Inverted bellows, ascending during exhalation as used in human anesthesia ventilators
Patient may breathe spontaneously from the bellows Microprocessor based electronic control system
L.C.D display of respiratory variables
Flow rate adjustable from 0-600 liters per minute with expanded range of flow rate selectivity
Scavenger assist included. Controls are scavenger assist on/off and scavenger assist flow rate
Includes & Interfaces with the Mallard absorber circuit Designed stand for multiple vaporizers. GCX mounting rail for mounting physiological monitors.
Extremely quite & smooth in operation

MRI MODEL:

This model have 100% pneumatic controls and displays (no electronics). They also contain all non ferritic materials to avoid magnetic attraction
Pneumatic display of selected respiratory variables
Inverted 18 liter bellows, ascending during exhalation as used in human anesthesia ventilators
Flow rate adjustable from 0 – 600 liters per minute with expanded range of flow rate selectivity
Scavenger assist included. Controls are scavenger assist on/off and scavenger assist flow rate
Designed stand for multiple vaporizers. GCX mounting rail for mounting physiological monitors
Come with large animal breathing circuit
Extremely quite & smooth in operation
Servicing Is extremely minimal and easy

Classification	Standard: A microprocessor based, electronic, time cycled, pressure limited, anesthesia ventilator MRI: A pneumatic controlled, time cycled, pressure limited, anesthesia ventilator
Bellows Orientation	Inverted (Ascending)
Volume	18 Liter Bellows for Large Animals with Large Animal Absorber Circuit
Controls	Inspiratory Time – .1 to 3 seconds Inspiratory Flow – 10 – 650 LPM Inspiratory Pressure Rate – 10 – 70cm H20 Pneumatic Manual Push Button for Inspiration
LED Display	Inspiratory Time Indicator Rate (BPM) I:E Ratio
Alarms and Alerts	Failure to Cycle – Visual-Audible Alarm Low Gas Pressure Failure – Visual-Audible Alarm Power Failure – Visual-Audible Alarm
Safety System	Overpressure Governor 80cm H20 (adjustable)
Gas Scavenger	19mm port
Absorber Volume For Soda Lime	6 Liter, Quick Change for Large Animals
Size & Weight	37” (94cm) Width x 28” (71 cm) Depth x 57” (145cm) Height. Weight 130lbs. 59Kg Note: Depth and Width Sizes above account for outboard hoses and fittings. The footprint of the base of the cart is 30” (76cm) Width x 24” (61cm) Depth
Options	Medical Air Option: (Optional 0-10 L/M Air Flow Meter and plumbing to mix medical air with default oxygen anesthesia gas.) Optional Vaporizer and Mounts
