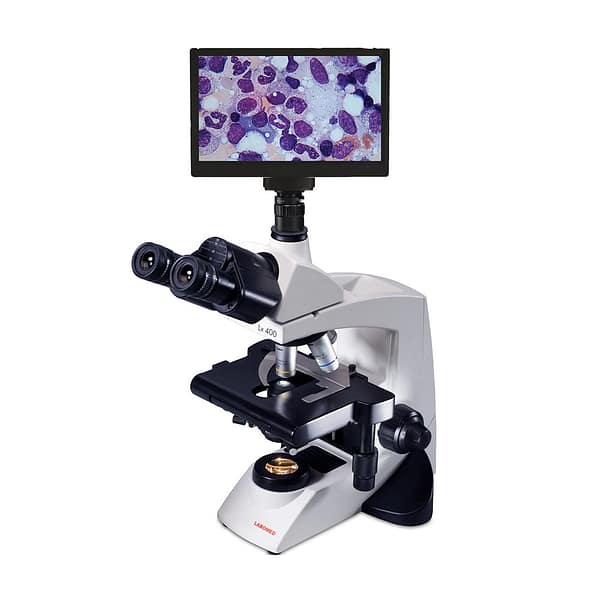

This Labomed Lx400 digital microscope is a complete system ideal for clinical or educational purposes. It includes the Labomed Lx400 microscope, c-mount adapter and a iVU Touch Digital Camera. The microscope has a trinocular head with a pair of 10x eyepieces which provide a large 20mm field of view. The quadruple reversed nosepiece comes equipped with RP infinity corrected DIN Plan Achromatic 4x, 10x, 40x, and 100 oil objectives. The mechanical stage is rackless so there are no parts that stick out! The condenser is a 1.25 N.A. fully focusable condenser with iris diaphragm. The rechargeable LED illumination eliminates the need to change the bulb!
Lx 400 Trinocular Microscope Specifications
- Head: Siedentopf Trinocular 30° inclined, 360° rotatable, Inter pupillary distance 48 – 75mm & c-mount adapter
- Eyepieces: Widefield 10x/20mm focussable eyepieces with foldable rubber eye guards, antifungal
- Nosepiece: Reverse angle quadruple nosepiece (Ball bearing type) with click stops and rubber grip
- Objectives: RP series Infinity Corrected DIN Plan Achromatic objectives 4x, 10x, 40x (spring loaded), 100x (spring loaded, oil), anti fungus
- Mechanical stage: Rackless X axis, double plate stage size 200 x 160mm, X/Y travel range 78mm x 54mm. Low drive right hand movement controls. Hard coated surface for scratch resistance. Double specimen holder
- Condenser: Sub stage Abbe condenser NA 1.25. Iris diaphragm with blue day light filter. Rack and pinion movements on stainless steel guides
- Focusing: Coaxial coarse and fine focusing on ball drive system for smooth operation
- Illumination: Rechargeable LED Illumination
- Warranty: 5 Year Mechanical 1 Year Electrical
iVU Touch Digital Camera Specifications
- Sensor: 1/2.5” 5.0 MP Color CMOS
- Active area: 5.70mm x 4.28mm
- Sensor resolution: Dynamic 2304×1728 / 4608×3456 pixels, Static 4608×3456 pixels
- Pixel size: 2.8µm x 2.8µm
- A/D conversion: 24 Bit RGB
- Pixel clock: 48 MHz
- Dynamic range: 60 dB
- Exposure: 1ms-1s auto/manual, white balancing, electronic rolling shutter
- Frame rate: 30 fps (@1920×1080)
- Image processing: High speed FPGA, progressive scan, advanced noise reduction
- Interface: USB 2.0, SD card, USB for wifi mouse
- Optical connection: C-mount
- Voltage supply: DC-12V
- Functions: Full measurement capabilities
- Ambient conditions: Operating Temperature: 0-60˚C
Include
- Lx 400 Trinocular Microscope
- C-mount Adapter
- iVU Touch Digital Camera
