HIGHDENT Trio PLUS Veterinary Dental Unit

Simple and easy adjustment of the handpiece console to the desired angle.

HIGHDENT Trio Plus Veterinary Dental Unit

Highdent a New Era in Animal Dentistry

The new and easy to clean shelf give you more space for your instruments
Height and handpiece console are adjustable
Clear indication of handpieces
Low risk of breakage and reduced risk of injury due to its recessed handpieces
Low risk of leaks due to its innovative piping system configuration
Automatic handpiece selection eliminates the risk of error
Full 5-year warranty on the unit, excluding handpieces
Highdent™ dental machines include a muffler to reduce noise from the handpieces
Water and airflow adjustments for individual handpieces offer better control
Available in 110 or 220 volts

More info

Choose Model

Color

Clear

Add preventive maintenance pricing and information to my quote.

Add to quote

SKU: N/A

Included with the Highdent™ Trio Plus

Air/Water Syringe
Piezo Scaler
High-speed handpiece
Low-speed handpiece
No.1 universal scaling Piezo tip
No.2 voluminous calculus scaling Piezo tip
No.10P shallow pockets scaling Piezo tip
Quiet compressor means less noise pollution with compressor oil

Specifications

Air/Water Syringe

Lightweight, compact contoured head
Quick connect-disconnect tip
Uses standard autoclavable tips
360º tip rotation
Precise control of air, water, and mist

Piezo Scaler

Totally autoclavable and easy to dismantle.

Ergonomics

Simple and easy adjustment of the handpiece console to the desired angle.

Automatic selection of handpieces

No waste of time selecting the handpiece.
No need to select a handpiece.

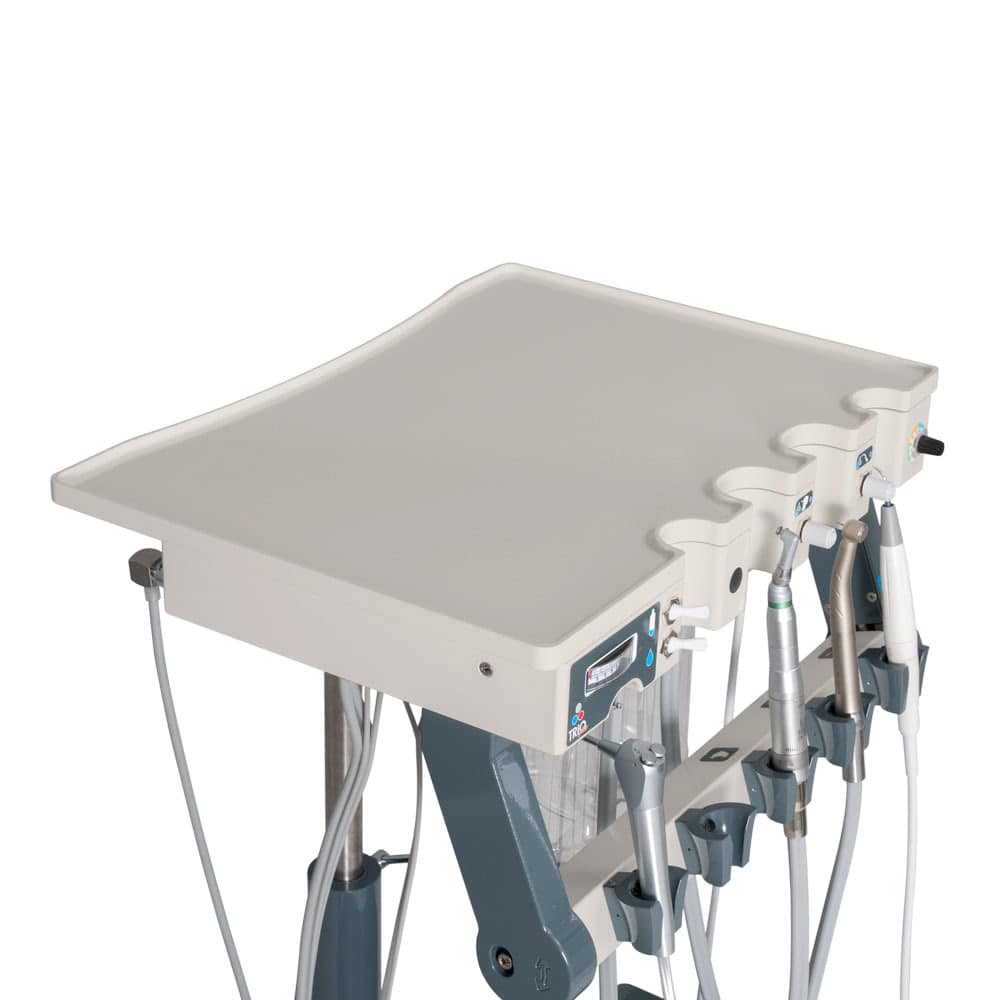

Shelf

More space for your instruments.
No joints, seals, or visible screws, for easier cleaning.
Rounded edge to prevent your instruments from falling.
12,5” x 17,5” (32 x 44,5 cm).

Adjustable height

From 31” to 41” (78.7 cm to 104 cm).

Foot control

Control the handpieces and suction.
Protective guard.

Muffler

Highdent™ dental machines include a muffler to reduce noise from the handpieces

Mobile and Secure

5.08cm (2”) castors with brakes

Compressor

The quietest on the market.
Very easy access to drain valves.
The fastest oil change in the industry.
Airflow: 2.1 cubic feet per minute.

110V with oil model

Amps: 7.0 A
Power Source: 120 V AC
Operaring frequency: 50-60 Hz

230V with oil model

Amps: 4.0 A
Power Source: 230 V AC
Operaring frequency: 50-60 Hz

Conforms and Certified

Conforms to UL STD 61010-1
Certified to CSA STD C22.2 No. 61010-1
Intertek No. 4009746

Optional features

Fiber optics
Colours
Wall-mount

Download

Wall-mount dimensions and installation sheet

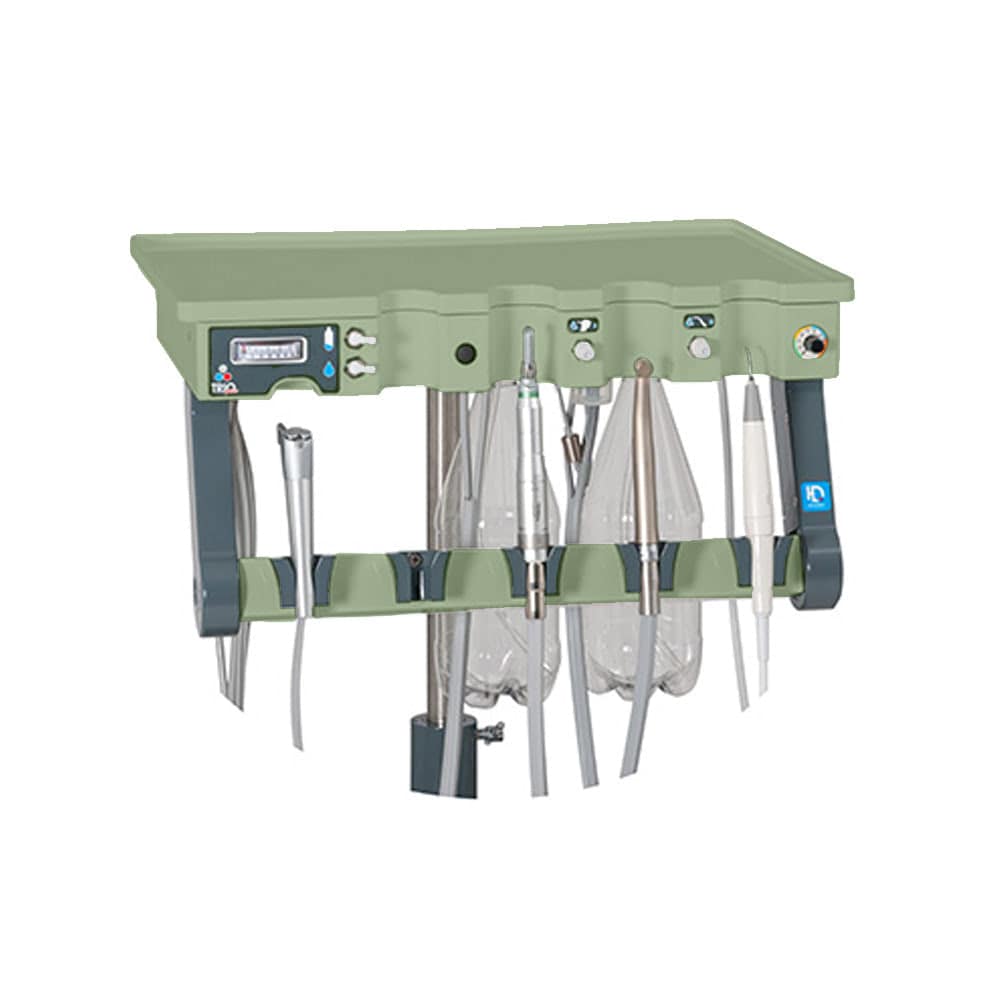

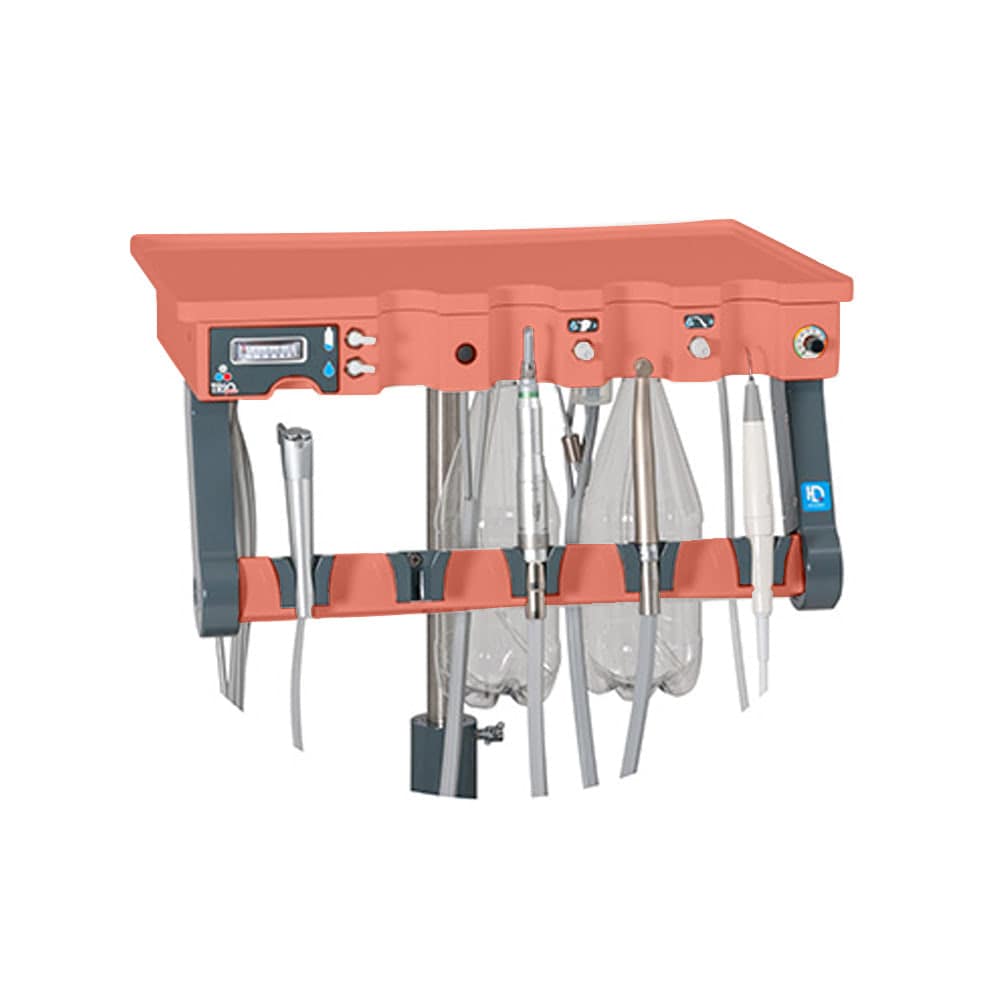

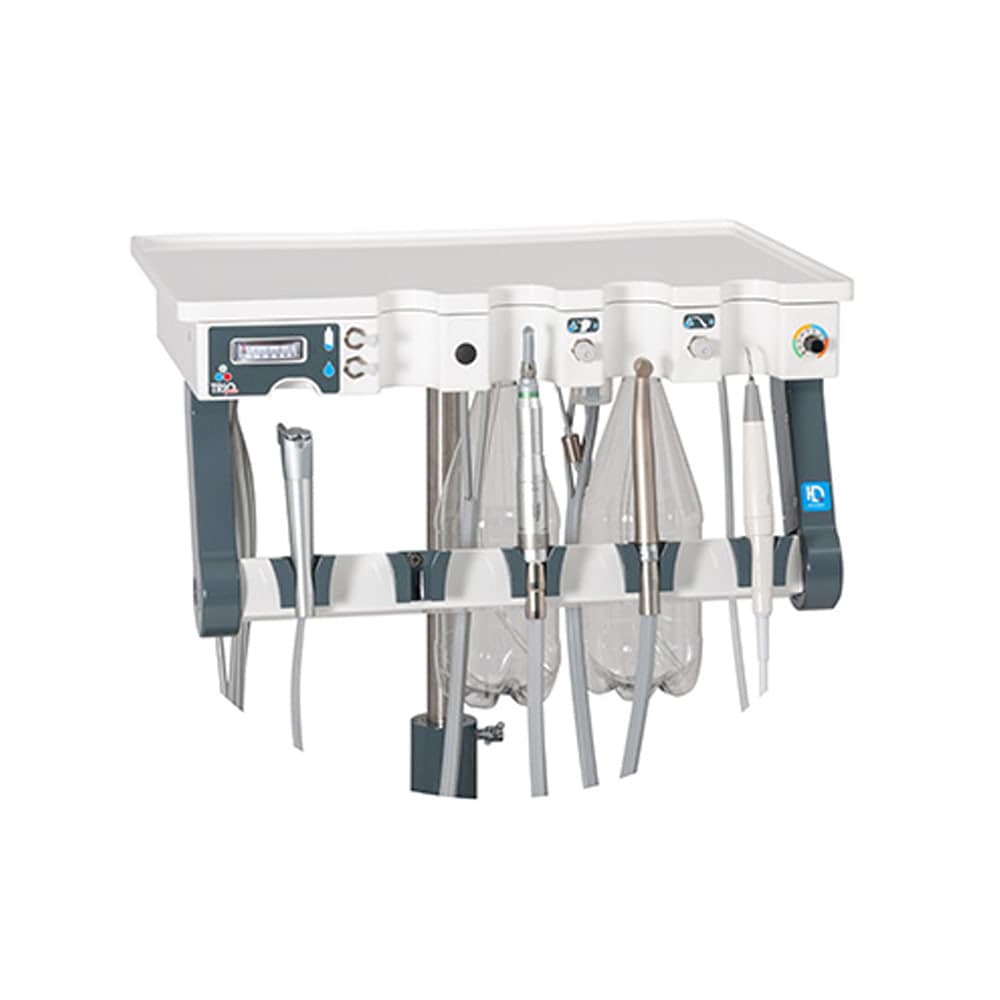

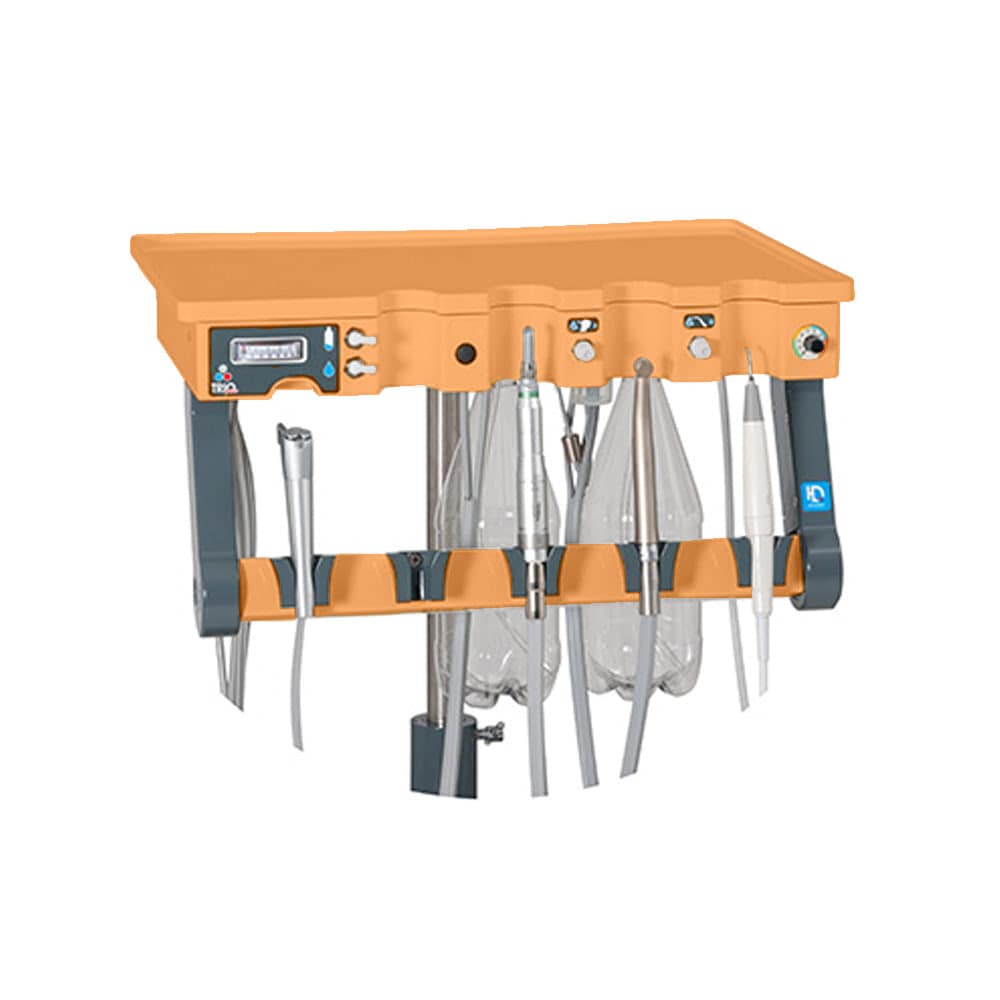

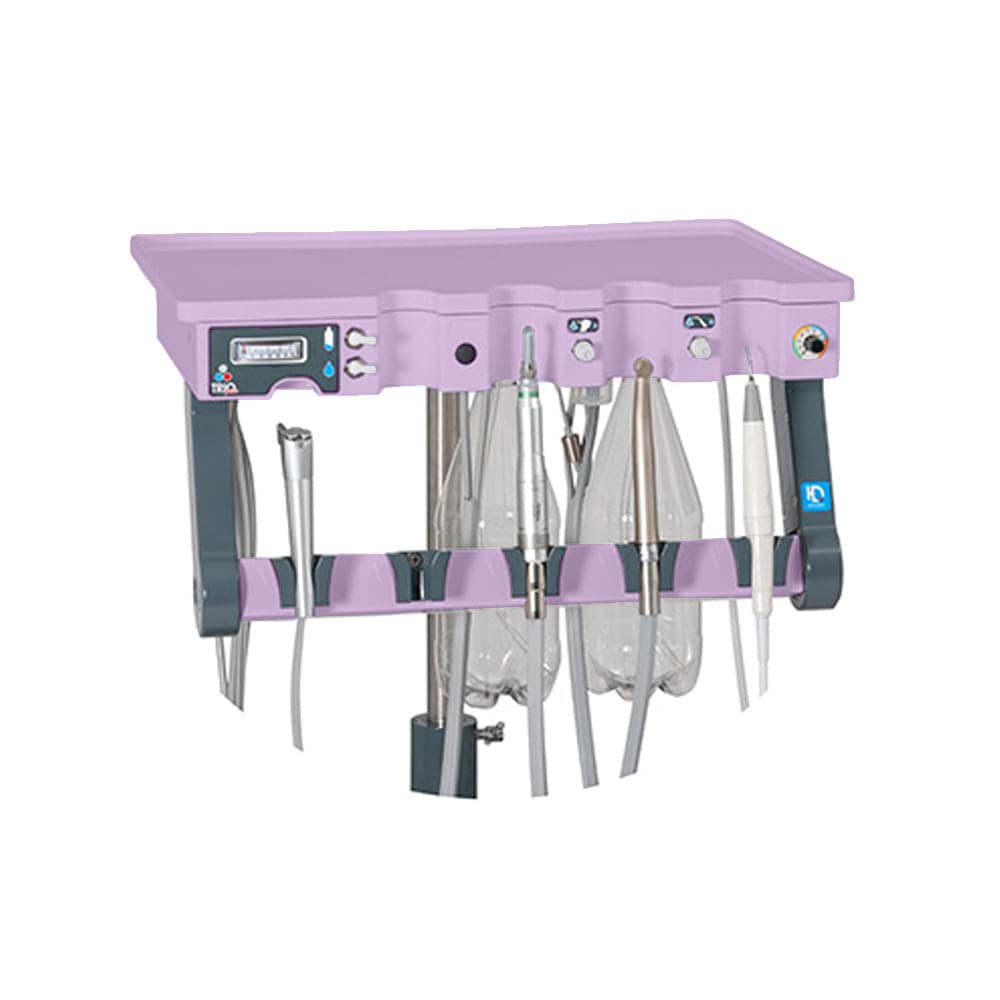

Optional Colours

Do you find grey and white boring? The Highdent Trio Plus is available in several colours that can brighten your workplace, for a low supplement.

Vibrant
Pink

Innovative
Orange

Passion
Red

Soft
Blue

Fresh
Green

Sunshine
Yellow

Mystery
Purple

Mermaid
Green

Italian
White

Rock
Grey

Ebony
Black

Product dimensions

Length	14.06"
Width	18.69"
Height	41"
Weight	95.03 lbs

Download Dimensions Sheet
