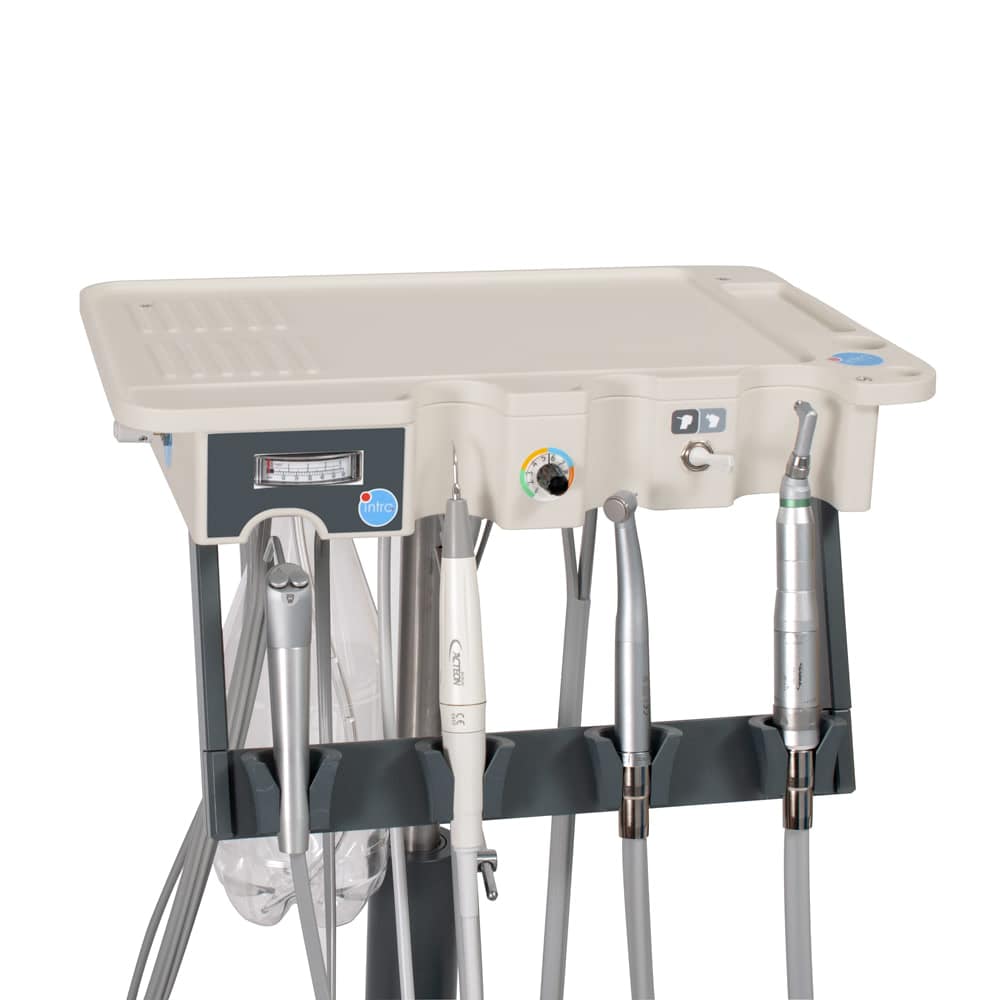

HIGHDENT Intro Veterinary Dental Unit

Included with the Highdent™ Intro Veterinary Dental Unit

• Air/Water Syringe
• Low-speed handpiece
• High-speed handpiece
• Piezo Scaler
• No.1 universal scaling Piezo tip
• No.2 voluminous calculus scaling Piezo tip
• No.10P shallow pockets scaling Piezo tip
• Quiet compressor means less noise pollution with compressor oil

Specifications

Air/Water Syringe

• Lightweight, compact contoured head
• Quick connect-disconnect tip
• Uses standard autoclavable tips
• 360º tip rotation
• Precise control of air, water, and mist

Piezo Scaler

• Totally autoclavable and easy to dismantle

Dimensions

• Depth: 39.36 cm (15.5”)
• Width: 45.08 cm (17.75”)

Shelf

• 9″ X 14″ (23 cm X 35,5 cm)
• With cut-out for instruments and prophy paste

Muffler

• Highdent™ dental machines include a muffler to reduce noise from the handpieces

Adjustable height

• From 78.7 cm to 104 cm (31″ to 41″)

Mobile and Secure

• 5.08cm (2”) castors with brakes

Compressor

• The quietest on the market.
• Very easy access to drain valves.
• The fastest oil change in the industry.
• Airflow: 2.1 cubic feet per minute.

110V with oil model

• Amps: 7.0 A
• Power Source: 120 V AC
• Operaring frequency: 50-60 Hz

230V with oil model

• Amps: 4.0 A
• Power Source: 230 V AC
• Operaring frequency: 50-60 Hz

Conforms and Certified

Conforms to UL STD 61010-1
Certified to CSA STD C22.2 No. 61010-1
Intertek No. 4009746

Optional features

• Colours

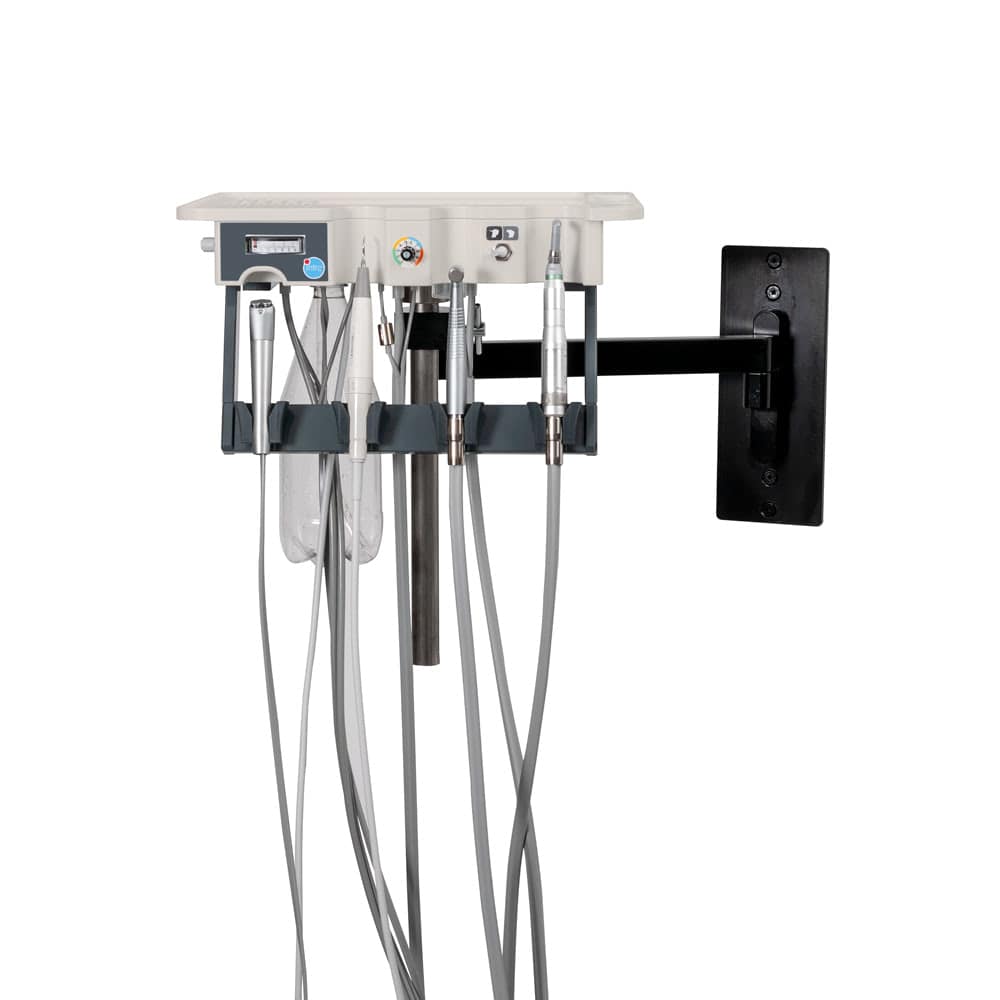

• Wall-mount

Download

Dimensions and installation sheet

Optional Colours

Do you find grey and white boring? The highdent™ Intro is available in several colours that can brighten your workplace, for a low supplement.
