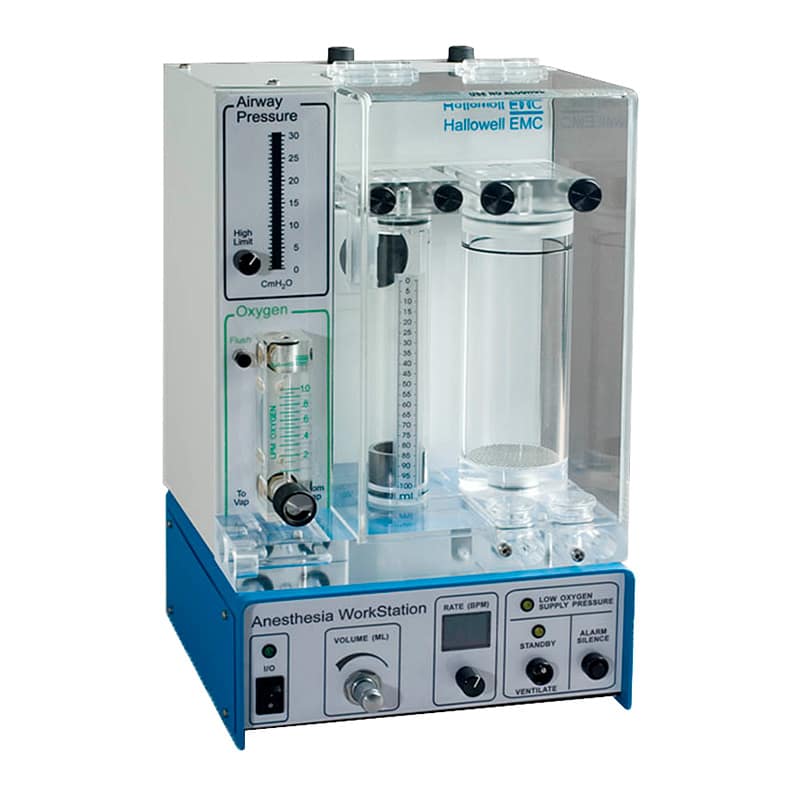

The system includes:
- Oxygen Flow Meter, 0.2 to 1 lpm.
- Oxygen Flush Button, 5 lpm and interlocked with the expiratory phase of the breathing cycle for improved patient safety.
- Connections to and from an anesthetic vaporizer.
- Adjustable High Pressure Limit, 10 – 30 cmH2O as indicated on the 30 segment airway pressure bar graph.
- High Breathing System Pressure Alarm
- Airway Pressure Manometer in bar graph format, 0 – 30 cmH2O.
- Low Breathing System Pressure Alarm
- 0 – 100 ml Tidal Volume displacement ventilator tube.
- 300 ml CO2 absorber.
- Enclosed and heated breathing system chamber.
- Power on/off switch and indicator.
- Volume Control.
- Rate Control, 4 – 80 breaths per minute and large LED display.
- Standby/Ventilate switch and indicator.
- Low Oxygen Supply Pressure Alarm
- Alarm Silence Push Button
- DISS Male Oxygen supply inlet connection.
- 19mm Scavenging port.
- 90/240 Vac, 47/440 Hz operation.
- Circle system tubes with standard 15mm ET tube connection.
- 2.5mm low dead space ET tube adaptor that fits luer catheters.
